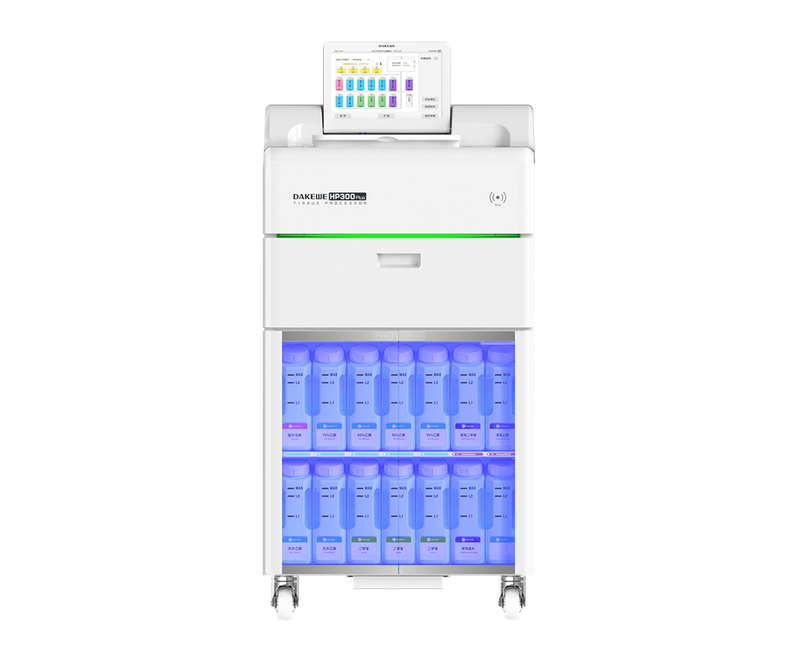

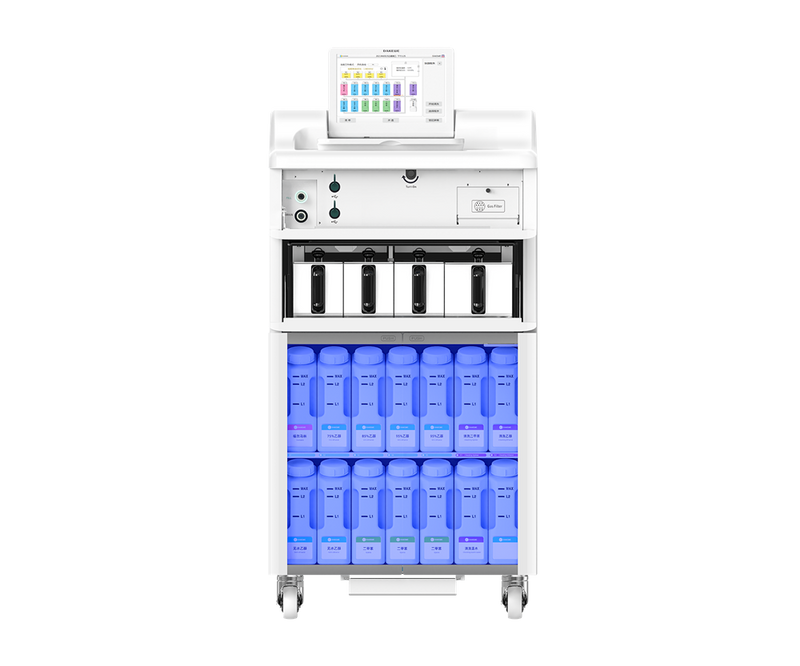

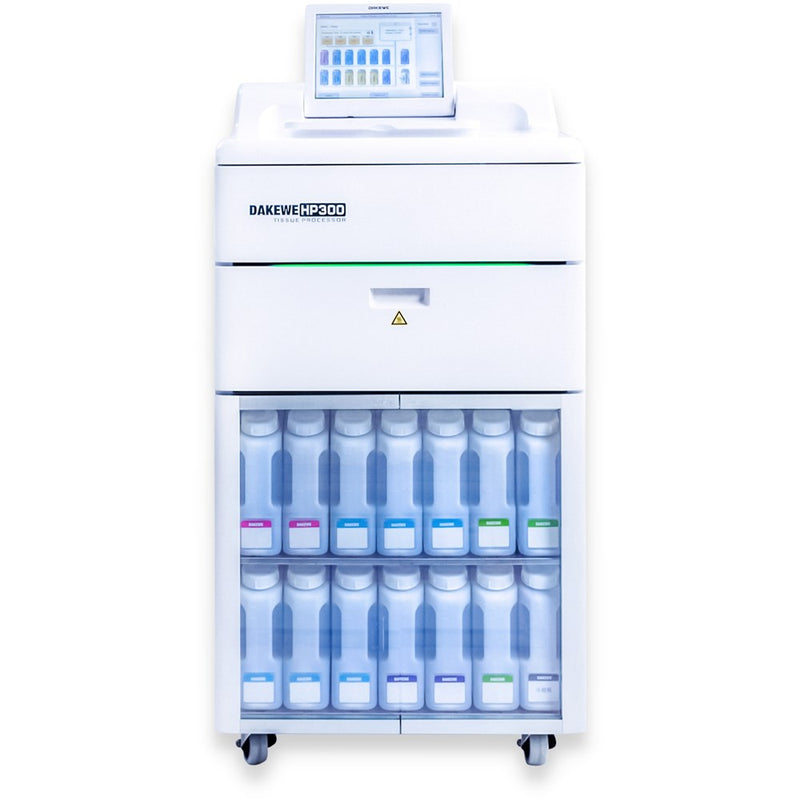

Dakewe HP300 Tissue Processor

Reliable

Self Check

Key parameters are checked automatically to pre-alert potential risks before processing.

Backup Solutions

Backup temperature control - Dual-sensor temperature control, auto-switch in control algorithm.

Component-level quality control

Safety

Specimen Protection

Comprehensive specimen protection system in accidents.

Specimen Safety

Smart software and safe running in reagent infiltration.

Functional and Performance Control

Real-time monitoring in the functional parameters, performance parameters and quality control record. Smart analysis of parameters variation helps to prevent risks.

Remote Monitoring System

More than a Monitor

Monitoring the tissue processor running status( via application through your smart phone, Laptops and iPad with DAKEWE free download application) checking the alarmtypes, keep specimens safe.

Liquid Sensor Monitor

Accuracy in the level detection with ultrasonic liquid sensor monitor, reduce misinformation and, easy to maintain.

Reagent Quality Management

Reagent Automatic Rotation

Reagent/paraffin automatic rotation, comfortable at operation.

Reagent Reminder

Automatic reminder in reagent bottles threshold, reduce misoperation.

Easy

Easy to use, ease to move, easy to clean , Dakewe Tissue Processor brings to the new working experience into your laboratory.

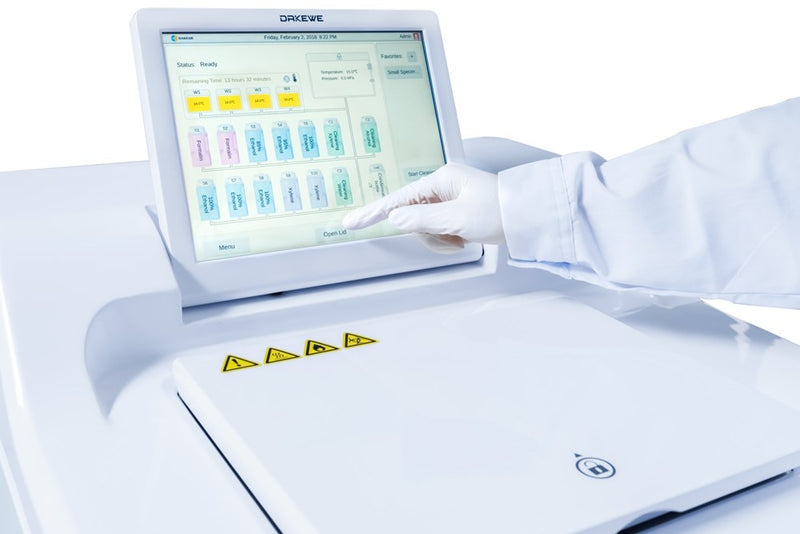

Electronic Lock

Touch the screen to open the lid, ergonomic handle to
lock.

Screen Angle Adjustment

With a 12.1 inch (30 cm) touch screen, the angles can be set to different positions for different perspective habits.

Liquid Level Observation

Blue light design brings a clear vision of the level inside
the reagent bottles.

Flexible Processing Capacity

Two models basket are available, 70 cassettes (one basket) and 150 cassettes (one basket). The processor can handle capacity with 2.5 L, 4.0 L, which can process 70 cassettes to 300 cassettes at one time according to your needs.

Easy to Clean

Teflon coating on the retort lid, easy to clean. A patented Marble countertop is easier to clean, care and maintenance.

Concise UI

Convenient GUI design, easy to understand and use.

Self-test
Automatically check key operation parameters before the process starts, minimizing the possibility of malfunction from the beginning.

Dual air pump system
Two air pumps can work individually or jointly to ensure instrument accountability.

Dual temperature sensors
Shift control algorithm spontaneously to provide excellent temperature control.

Component monitoring
Real-time monitoring of components and parameter settings. Together with intelligent analysis and precaution, further offers great overall performance.

Operation

Auto electric lock

Electric lock can be triggered on touch screen effortlessly and offers better sealing.

Retort lid heating

Backup Temperature Control Dual-sensor temperature control, auto-switch in control algorithm.

Back-lit reagent cabinet

Blue lights illuminate reagent bottles, know liquid level at a glance.

Cleaning xylene pre-heating

Heating module under cleaning xylene bottles can heat to 40 - 55℃, further improving cleaning performance and efficiency.

Twice wax draining

Drain wax a second time before xylene cleaning to reduce wax residue and save cleaning reagents

Specimen safety

Cloud remote monitoring

Have the status in control even while away, remind via multiple methods when a risk is detected.

Automatic Concentration Monitoring (ACM)

On-board high precision sensors detect alcohol concentration to prevent incorrect replenishment.

Ceramic rotary valve

Heat-resistant ceramic valve significantly reduces blockage caused by wax attachment and thus promotes the stability and accuracy of liquid delivery.

Ultrasonic sensors

Ultrasonic sensors unaffected by wax build ups are able to provide correct liquid level information consistently.

Intelligent features

Reagent Bottle Intelligent Identification System (RBIIS)

Identification module built in every reagent bottle enables auto reagent information extraction and position detection to streamline reagent management.

Auto fill-up

Fill reagent or paraffin to appropriate level from corresponding reagent group when remaining liquid in the bottle is insufficient and alert operator, so as to avoid sample from accidental drying.

Remote fill & drain

Reagent ports exclusively for easy and automatic remote fill & drain. Following auto pipe cleaning eliminates cross contamination.

Wax Purification

Innovative wax purification feature removes solvent residue in wax, extending its service life.

Dimensions

W x D x H (mm): 620 x 640 x 1170

Weight (kg): 180

Brochure

Operator Manual - HP300

Operator Manual - HP300 Plus

Comparison Chart HP300 Plus vs. VIP 6 AI

Comparison Chart HP300 vs. VIP 5
